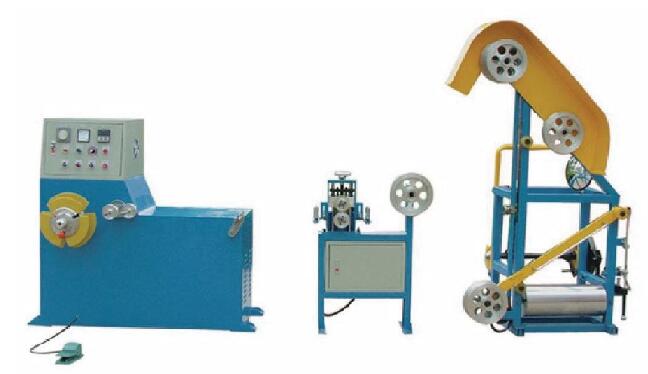

Semi-automatic coiling machine

Application: Applied to wire and cable traversing and coiling automatically.
Small section coiling machine

Scope of Application: 0.5~6mm²for BV/BVV/RV and small section cable that the diameter of which is less than 8mm.

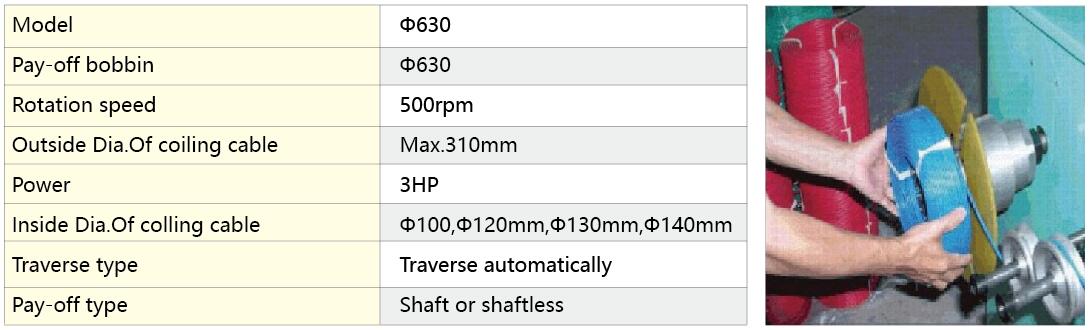

Technical specification

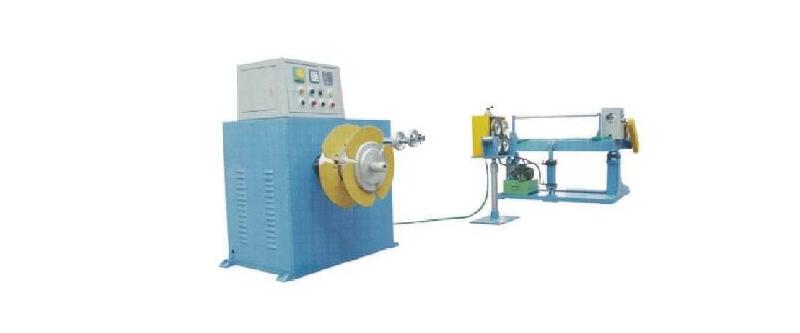

Middle section coiling machine
Scope of Application: 10~70mm² for single cable and round sheathing cable that the diameter of which is less than 20mm.

Technical specification:
pay-off unit：Φ1000-Φ1400mm shaftless
Meter counter：high precision meter counter，the precision of 0.2%
Rotation speed：200rpm；Power：5HP

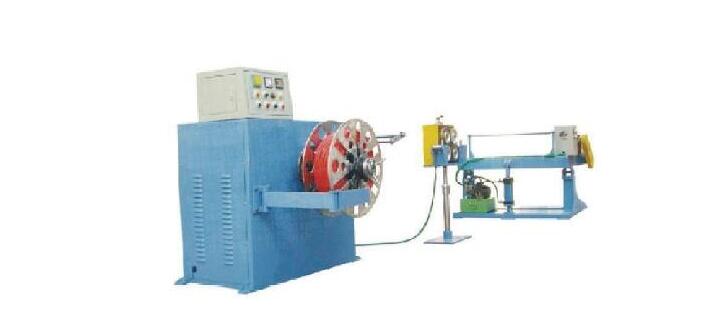

Large section coiling machine
Scope of Application: 50~240mm² for single cable and round sheathing cable that the diameter of which is less than 30mm.
Technical specification:
Pay-off unit：Φ1000-Φ1400mm shaftless
Meter counter：high precision meter counter，the precision of 0.2%
Rotation speed：150rpm；Power：7.5HP
