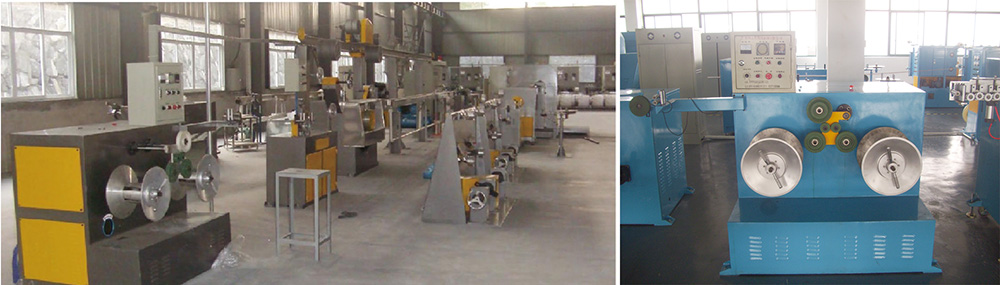

Mesh coiling machine

Application: Suitable for Cat5,Cat5e,Cat6 and coaxial cable meshy coiling.
Feature
Single structure with stable performance，Convenient operation，economical and practical.
Technical specification:
a、Motor：3HP
b、Traverse type: Spiral type drum traverse
c、Transverse range: Adjustment by stepless transmission
d、Length of coiling cable:305m
e、Size of coiling cable: (Outside Dia.)Φ380mm x (Outside Width)250mm x (Inside Width)170mm x (Tube Dia.)Φ60mm
f、Counter: Auto-length-counting.Auto-stop when reaching the set length.
g、Brake type: electromagnetic clutch
h、Type of take-up bobbin: Tensioner automatically
i、Speed:150m/min
