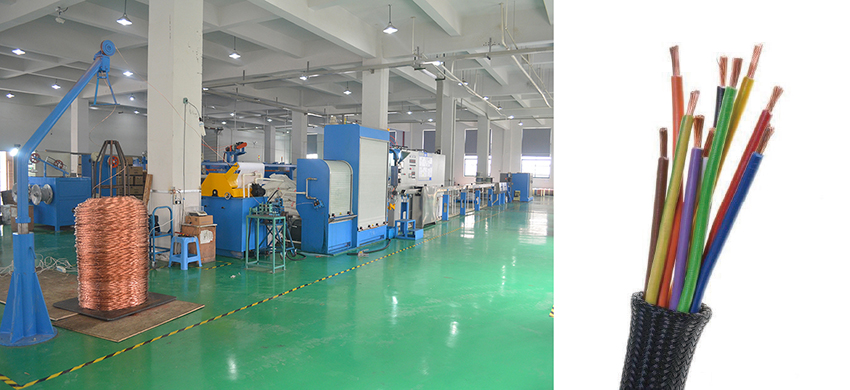

Drawing and insulating Tandem line

Application：Suitable for solid insulation for Cat5e/6/6a.
Feature:
Compact wire drawing machine with intergrated continuous annealer and preheater.The elongation of copper wire is uniform after annealing.The extruder with BM type screw gives homogeneous output and uniform insulation diameter. Precise fix-center crosshead with color stripping or color skin gives above 95%high concentricity of the insulation and less influence on the capacitance from different color.The whole drawing/insulating Tandem line is controlled by industrial computer and PLC.Human-computer interaction interface. Dual take-up machine with automatic coiling, loading/unloading device.

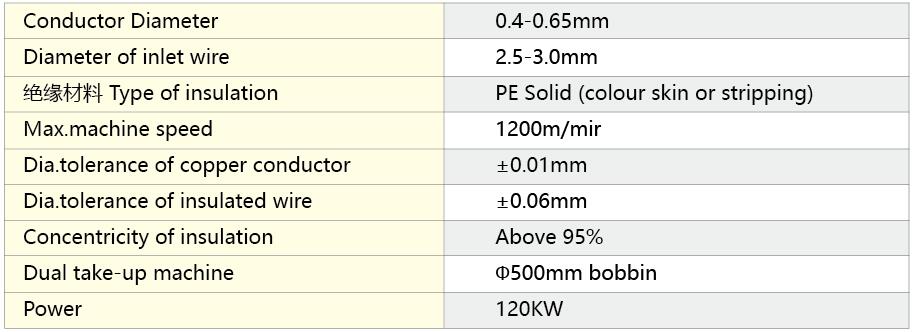

Technical specification
