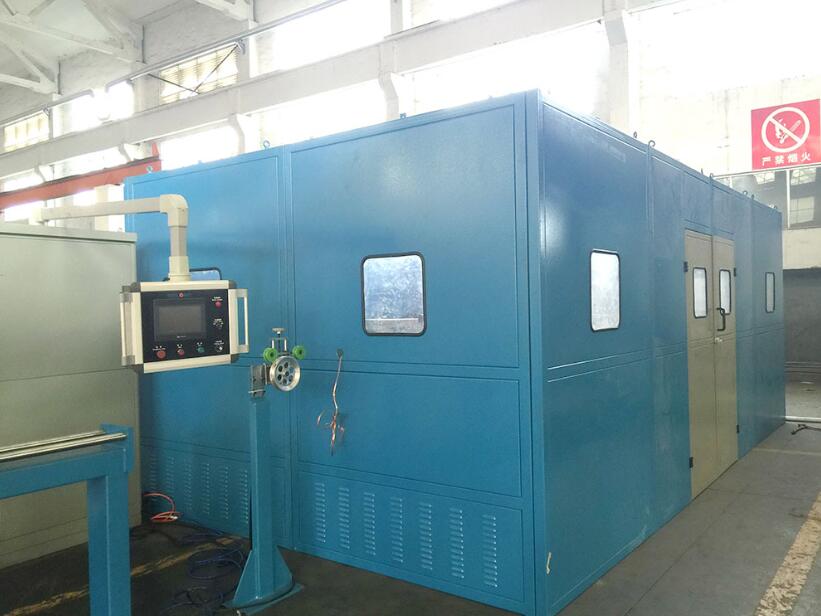

Φ1250-1600mm roll form strander

Application：The process of the manufacture of compact conductors is very important for Aluminum Alloy Cable.The machine increase greatly the production efficiency by means of integrating the process of roll forming of shaped wire and double twist stranding of conductors.It can achieve fill factors of 96% and greater.

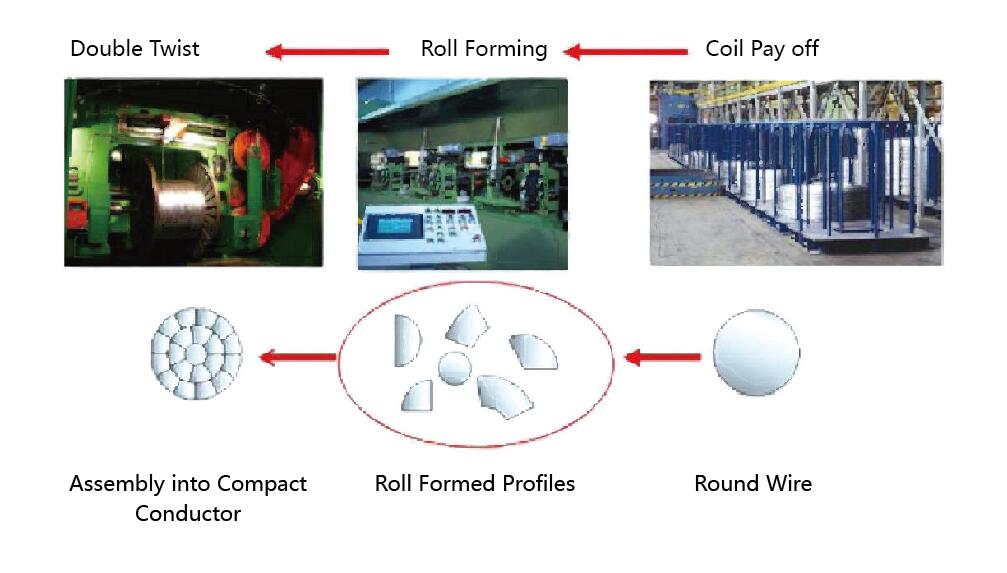

Process Steps

Feature

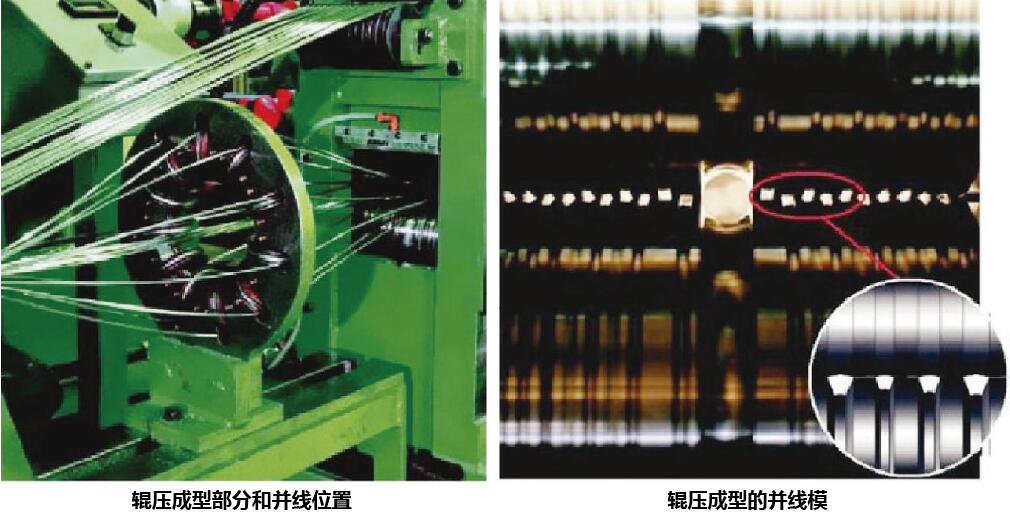

● Increase greatly the production efficiency by means of integrating the process of roll forming of shaped wire and double twist stranding of conductors.
● The production efficiency of roll form strander is about 4 times as high as the rigid strander’s.The speed of the Roll Form Strander is 1200 rpm, product dependent; whilst in comparison the rigid strander at best would operate at 300tpm.
● By incorporating the Single Input Wire(SIW) diameter program into the strand design,significant savings can be achieved in Wire Drawing,Stranding and the Insulation processes.
● Save the factory space and manpower because of the compact structure.The whole Roll Form Stranding process only requires one operator.
